Underground plumbing is an essential component of the new build or remodeling project. Essentially, water supply, drainage, and sewer systems are run underground for efficient operation and durability. It may be a bit confusing initially, but with a little knowledge of the major stages, the task is equally feasible for a homeowner, a builder, or a developer of a neighborhood.
Simply put, there are several key phases involved in underground plumbing, such as conceptualization and material acquisition, the actual digging and installation work, testing, and making sure everything is in accordance with local regulations and codes here in the US. The result of a job well done will be safety to everyone, a steady system, and hardly any troubles in maintenance after the years have passed.
Planning And Preparation
Planning is probably the single most important factor in ensuring the success of underground plumbing, even before the actual work starts. This stage is determining the requirements of your job, recognizing potential hazards, and meeting local rules.
Understanding Your Project Scope
It might be something as simple as laying a residential water line at home or hooking up a larger sewer system of a whole community. Knowing beforehand what kind of and how much piping you will need, as well as how deep the installation will be a big step toward saving time and avoiding mistakes that will cost you.
Check Local Regulations
The United States has plumbing codes – the International Plumbing Code (IPC) or the Uniform Plumbing Code (UPC) – that regulate underground plumbing, which code depends on the state you live in. These codes mainly stipulate types of pipes, how deeply they are to be buried, slope requirements, and testing procedures. Getting help from the construction estimating company right at the start of your planning can be a great way to ensure that your materials and ways of doing are in line with the local regulations, thus you will save both time and money.
Locate Existing Utilities
Call 811 (Call Before You Dig) first if you are planning to dig. The company will come and mark existing utility lines like electricity, gas, or telephone, which, if unintentionally damaged, can lead to
a) pay fines
b) be liable for a safety hazard
c) the work will be stopped until it is fixed.
Project Layout
Prepare a comprehensive sketch or layout of your sewer and plumbing lines showing water supply routes, drainage connections, and maintenance holes. The schematic will be useful in guiding trenching, pipe installation, as well as any subsequent works.

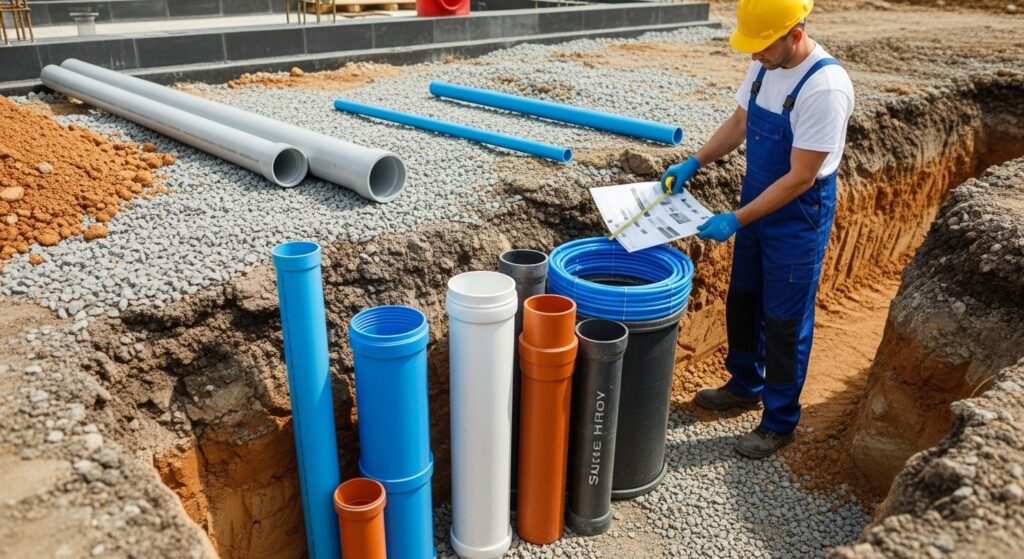

Materials Selection For Underground Plumbing
Plumbing materials must be carefully chosen to ensure both longevity and performance. There are a variety of pipes and fittings that the U.S. plumbing industry frequently utilizes. Each of these has its own features that make it appropriate for different uses.
Pipe Options
- PVC (Polyvinyl Chloride): For drainage and sewer lines, this is the most popular choice because of its low price, resistance to corrosion, and the fact that it is very easy to work with.
- CPVC (Chlorinated PVC): This is a good choice for hot water lines in houses.
- PEX (Cross-linked Polyethylene): Good for water supply lines, especially in freezing weather, because it is bendable and does not break easily.
- Copper: This is a very nice material that will last you a long time but it is quite costly.
Fittings And Connectors
The fittings must be the same type and size as the pipes. In order for the connections not to leak, they should be tight. The glue, solvent cement, or mechanical couplings you use depend on the material.
Bedding And Backfill Material
Bedding should be sand or fine gravel that will provide a soft layer for the pipe, restrict its movement, and shield it from the impact of the backfill.
Trenching And Excavation
Trenches dug in the correct way are very important to outdoor plumbing. Unless pipes are placed in a trench that has been dug correctly, they will tend to move later, the gradient will be wrong, and the system will wear out faster than it normally would.
Trench Depth And Width
- A trench for individual water supply pipes should be 18 to 24 inches deep to keep the pipes from freezing.
- Depending on the grade of the sewer line, trench depths of 24 to 36 inches are necessary.
- The trench must be wider than the pipe by 6 to 12 inches so that bedding can be placed and pipe installation is easier.
| Pipe Type | Recommended Trench Depth | Recommended Trench Width |
| PVC Water | 18–24 inches | 12–18 inches |
| Sewer PVC | 24–36 inches | 12–18 inches |
| Copper | 18–24 inches | 12–18 inches |
Slope Requirements
The first thing to think about when installing a drainage system is that gravity lines must have a uniform slope. Typically, a sewer line must be sloped 1/4 inch per foot.
Safety Concerns When Working in Trenches
We know it is dangerous when a deep trench falls because people could be seriously injured. You can save workers in trenches by using trench boxes or shoring, or properly sloping sides so that they can work safely without risk of accident.

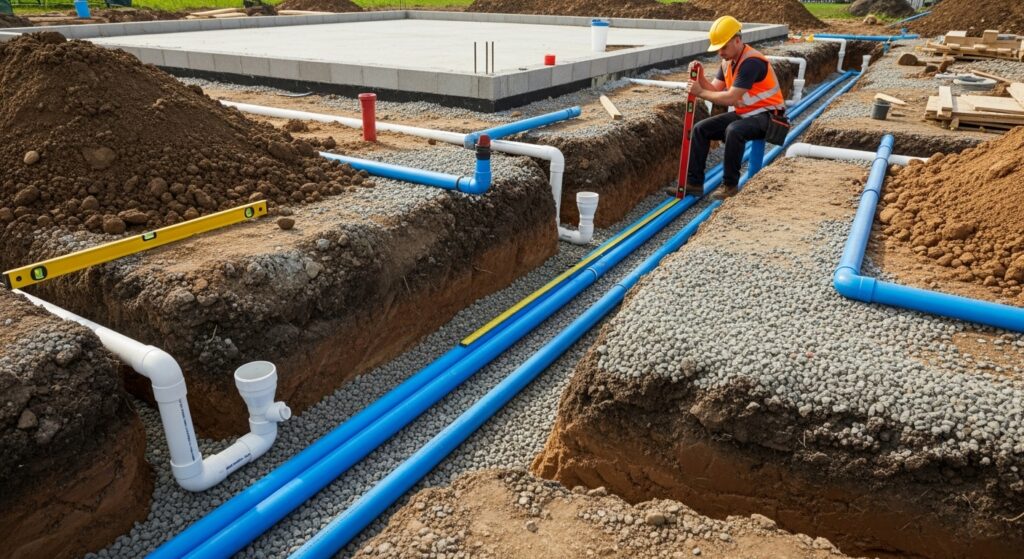

Pipe Installation
Sandwich the pipes between soil only after you have completed the trench.
The pipe installation should be done carefully to prevent leaks later and to comply with the standards for access and safety.
Bedding And Alignment
By laying a cushion of sand or small gravel in the trench, the pipes will be better supported and protected from impacts.
The pipe should be placed on the bedding material after checking that the slope is consistent and that the pipe is properly aligned with others.
Fitting And Joining Pipes
Before gluing PVC pipes, ensure the lengths fit perfectly, and the pipes line up correctly. Use solvent cement for PVC pipes, insert and crimp PEX pipes, or solder copper joints after aligning the pipes perfectly.
Clean-Outs And Access Points
Certainly, cleaning out is done when the waste system gets too dirty. Places where clean-outs are installed are very important because they allow easy access for cleaning.
Insulation
Heating elements can be used to keep pipes warm so they don’t freeze in cold climates.
Testing And Inspection
By performing the test before covering the underground system, you can be sure the system is working correctly, and you have avoided expensive repairs.
Water And Pressure Testing
You can check the pipes for leaks by filling them with water and performing a pressure test. To test sewer lines, you can either fill them up with water and watch for loss, or refer to your local regulations, which may permit testing with air.
Official Inspection
The majority of places in the U.S. require a government plumbing inspector to come and approve the work before you use it. A passing inspection certifies that your construction is well done to building codes and helps to avoid legal problems later on.
Backfilling And Final Steps
When the testing phase is done, backfill the pipes in a manner that will provide support and restore the original state of the landscape.
Backfill Procedure
The underground plumbing work carries a high risk. Apart from trenching accidents, make it a habit to put on your protective equipment like gloves, goggles, and boots. Also, you must be very careful of utility lines nearby. Make sure the trenches are properly marked so that there is no danger from people or machines going by.
Conclusion
The installation of underground plumbing that complies with U.S. building codes requires careful planning, accurate work, and strict adherence to safety rules. From the drawing stage and choice of materials to trenching, pipe installation, testing, and backfilling, all these steps are essential in achieving a safe, functional, and durable plumbing system.
Following the steps in this article, both homeowners and community builders will be able to handle underground plumbing projects safely and efficiently, and with accurate plumbing costs estimating, in compliance with all necessary regulations.
FAQs
Q1: How Deep Should Water And Sewer Pipes Be In The U.S.?
Water lines: 18–24 inches, Sewer lines: 24–36 inches, depending on slope.
Q2: Can I Use Pvc For All Underground Plumbing?
PVC is suitable for drainage and sewer lines; CPVC or PEX is preferred for hot water supply lines.
Q3: Do I Need A Permit For Underground Plumbing?
Yes, permits are required in all U.S. states to ensure compliance with local codes.
Q4: How Do I Test Underground Plumbing Before Backfilling?
Use water or pressure tests to check for leaks and ensure proper flow before covering pipes.
Q5: How Do I Prevent Pipe Damage During Backfilling?
Use sand/gravel bedding, compact soil in layers, and avoid heavy equipment directly over pipes.
